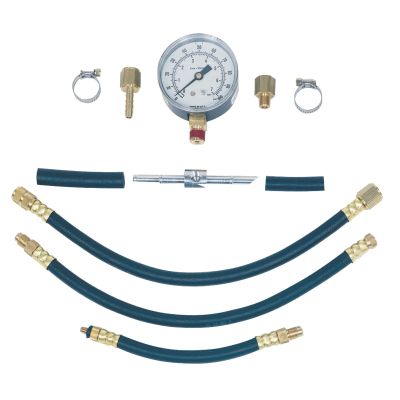

FIT13AFUEL INJECTION TESTER
FIT13A FUEL INJECTION TESTER - Features & Benefits
- This basic fuel injection tester includes large and small Schrader adapters, M6-1.00 O-ring adapter, and tee manifold
- Includes everything necessary to test the following systems: American Motors; Bosch AFC, MPC European and Japanese (except CIS- use our FIT447); Chrysler Corporation; Ford Motor Company; GM (except TBI- use our FIT446); Japanese fuel injection systems; a
- The 2-1/2" gauge has a dual scale dial with ranges from 0-100psi and 0-7 bar.
- Fuel injector tester in blow molded case
| Part # | Product Name | Qty in Set |
|---|---|---|
| BD10402 | COUPLING | 1 |
| BD74459 | CONVERSION ADAPTER F/3M CLNR | 1 |
| FIT13-G | GAUGE | 1 |
| BD41458 | FIT13A SNAP-IN LENS 2-1/2 IN | 1 |
| FIT13-C | SMALL PARTS KIT | 1 |
| BD34021 | 2 IN CUT HOSE-1/4 IN ID | 1 |
| BD35031 | 3 IN CUT HOSE-5/16 ID | 1 |
| BD37443 | 1/4X1/4 FEMALE HOSE COUPLING | 1 |
| BD11301 | REDUCING ADPT | 1 |
| BD41152 | HOSE CLAMP | 2 |
| BD60210 | MANIFOLD ONLY F/FIT13A | 1 |
| BD71307 | DEPRESSOR & GASKET | 1 |
| 41028W | SCHRADER WASHER (5PK) | 1 |
| FIT13-B | HOSE-GM,LG SCHRADER F/FIT13A | 1 |
| BD41853 | RUBBER WASHER | 1 |
| FIT13-D | FORD ADAPTER | 1 |
| BD43051 | O RING F/FIT13-E ADAPT. | 1 |
| BD71304 | HONDA ADAPTER | 1 |
| CT65-D1 | VAL.CORE F/CT65&66 | 2 |
| BD52001 | PLASTIC BOX 10-3/8X4-5/8X1-11 | 1 |
