ADVANCED TECHNICIAN METER

Product Image
Part No. MDTECHPLUS
$231.00

Features & Benefits

  • Provides accurate readings for volts, amps and ohms required for automotive electrical system tests
  • Tests include: frequency, duty cycle, capacitance, RPM, temperature, true RMS and more
  • Auto range and data hold functions provide safe and accurate testing
Full Details Below


Features & Benefits

  • Provides accurate readings for volts, amps and ohms required for automotive electrical system tests
  • Tests include: frequency, duty cycle, capacitance, RPM, temperature, true RMS and more
  • Auto range and data hold functions provide safe and accurate testing

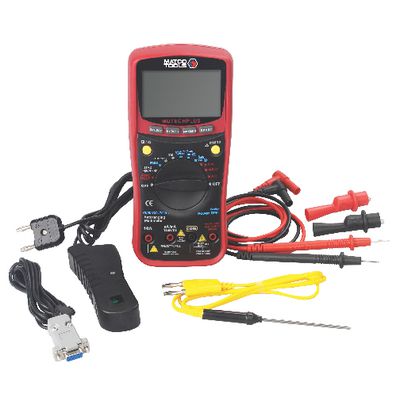

  • Includes: meter, red/black leads with probes, alligator clips, RPM adapter, temp adapter, manual, PC cable, software and soft-sided carrying case
  • Frequency: 1Hz-10MHz±0.1%
  • RPM (direct test with leads): 0-10,000
  • Dwell angle: 0-360º (1-12CYL)
  • Duty cycle: 0.1%-99.9%±2.5%
  • Pulse width (negative): 1-999ms
  • DC volts: 400mV/4/40/400V±0.5%, 1000V±0.8%
  • AC volts: TRMS-4/40/400V±0.8%, 400mV/750V±1.2%
  • DC amps: 400 /4000mA±2%, 40/400mA±1.5%, 4/10A±2%
  • AC amps: TRMS-400/4000mA±2%, 40/400mA±2%, 4/10A±2.5%
  • Resistance: 400Ù/4/40/400kÙ±1%, 4/40MÙ±1%
  • Capacitance: 40nF/400nF/4ìF /40ìF±3%, 400ìF±5%, 4000ìF±20%
  • Temperature: -50ºC to 400ºC
