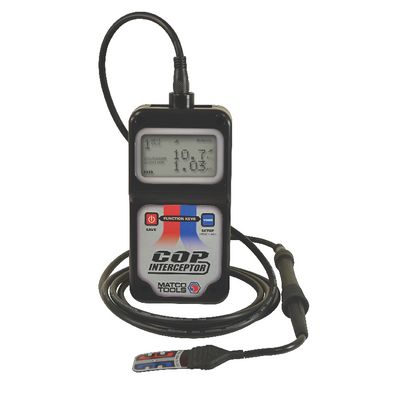

COIL-ON-PLUG INTERCEPTOR

COIL-ON-PLUG INTERCEPTOR | Matco Tools
Part No. MDCOP
$391.85

Features & Benefits

  • Easy two button operation is simple to operate while providing advanced ignition data
  • Misfire counter and indicator catches intermittent problems that don’t set a diagnostic trouble code (DTC)
  • No COP removal required, saving time and testing COP ignition under true operating conditions
Full Details Below


Features & Benefits

  • Easy two button operation is simple to operate while providing advanced ignition data
  • Misfire counter and indicator catches intermittent problems that don’t set a diagnostic trouble code (DTC)
  • No COP removal required, saving time and testing COP ignition under true operating conditions
  • Auto-set gain calibration provides the most accurate data for multiple styles of COP ignition systems
  • Voltage snapshot — tap mode button to lock reading in any mode
  • Real-time kV and mS measures secondary circuits breakdown voltage and arc/burn duration time individually as they happen
  • Breakdown voltage measurement range: +/- 30kV
  • Arc duration measurement range: 0.3 - 5.0 mS
  • Resolution: 0.1kV and 0.01 MS
  • Multi-strike ignition: first V event, last mS events are displayed
  • Misfire detection: functional from 240-4000 RPM
  • Voltage supply: 9V battery (8-10 VDC)
