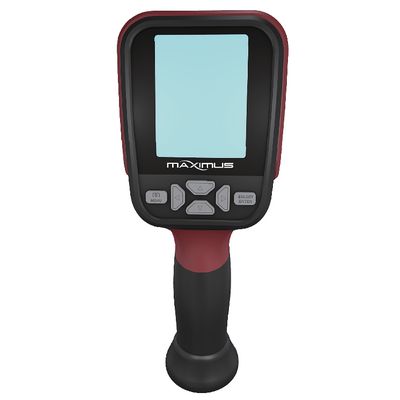

MAXIMUS THERMAL IMAGER

Part No. MDMAXTI
$1,099.95
Features & Benefits
- Captures infrared rays and other types of rays, converts the radiation information into an image and clearly displays on color screen
- The center point measurement cursor quickly and accurately locates the problem, measures the temperature and saves time
- Visible light combined with infrared images
Features & Benefits
- Captures infrared rays and other types of rays, converts the radiation information into an image and clearly displays on color screen
- The center point measurement cursor quickly and accurately locates the problem, measures the temperature and saves time
- Visible light combined with infrared images
- 3.2" TFT high definition color screen
- Five modulated imaging modes to choose from allowing you to find the head variant
- Super sensitivity of 0.07°
- Store up to 20,000 pictures with the built-in 3GB storage
- 1.5' - 130' imaging distance
Return Policy *
30-Day Risk FREE return for refund or replacement
If you are not 100% satisfied with your returnable items,
return the product for a refund.
* Applies to all purchases made on MatcoTools.com excluding Toolboxes, Tool Carts, Diagnostics, Welders, Shop Equipment and shipped items weighing more than 150 pounds; Excludes all Gifts and Branded Apparel items except branded apparel size exchanges for exact items. See your Authorized Matco Tools distributor for warranty or return information on purchases made offline.
Specifications
Response Time (Seconds) | 0.2sec | Resolution (Degrees C) | 0.1°C |
---|---|---|---|
Temperature Range High (C) | 450°C | Temperature Range Low (C) | -20°C |
Color (Matco Standard) | Burgundy | Temperature Range Low (F) | -4°F |
Automatic Shut Off | Yes | Temperature Range High (F) | 842°F |
Weight | 0.9lbs. | Accuracy (+/- Degrees F) | 2°F |
Resolution (Degrees F) | 0.18°F | Packed In | Blow Molded Case |
Accuracy (+/- Degrees C) | 16°C |
MAXIMUS THERMAL IMAGER is rated
3.7 out of
5 by
3.
Rated 5 out of
5
by
John78 from
Very good gun sold buy a great dealer!
Very good buy great case great, but I great gun and features.
Date published: 2020-10-21
Rated 1 out of
5
by
Luis2020 from
This is not a 100% Matco product... Launch Tech USA service and or make these for matco
so ive had mine for a couple of months now, bought it in january,
1. unfortunately if you have any issues with this device it has to be sent to launch tech usa to get serviced even though it has a matco stamp,
2. on the owners manual it says it has a database upgrade.. which is a complete lie.. the download file its described to be in matco's website.. not on there.... does not exist on matco's their webpage...
3.so my device started having issues since the beginning , screen will freeze and you are unable to power it down, the only way is to let the battery die... ive had not had the time to speak with support till now and this is what ive got.. they can't do anything, i have to get my matco distributor to send it to launch tech usa to get it serviced... i wanted a matco tool and not a launch tech product with a matco face... i feel ripped off big time for such an expensive item...
4. this is not the only issue ive had with matco tool's quality.... will be making a a video regarding my experiences with matco tools and their quality... this is the LAST matco tool i ever buy....
Date published: 2020-06-05
Rated 5 out of
5
by
Frank90 from
Amazing product
I have been eyeing a thermal imager for some time now. When I saw that Matco recently released this product and I saw the tutorial video that was posted to the Matco Youtube page, I was sold. It has already helped me several times in the couple weeks I've owned this product. Works great on finding seat heater grid faults and issues with heated steering wheels. I look forward to seeing database updates down the road, as the ones on the unit already are great references to compare known good and bad components!
Date published: 2019-11-24
