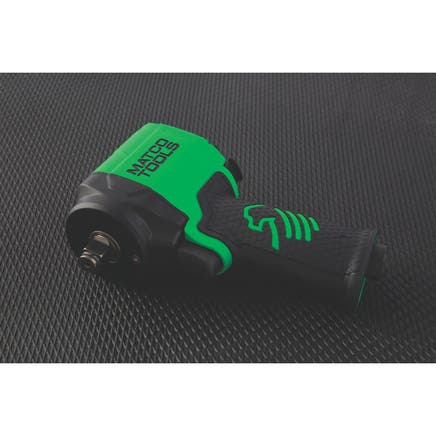

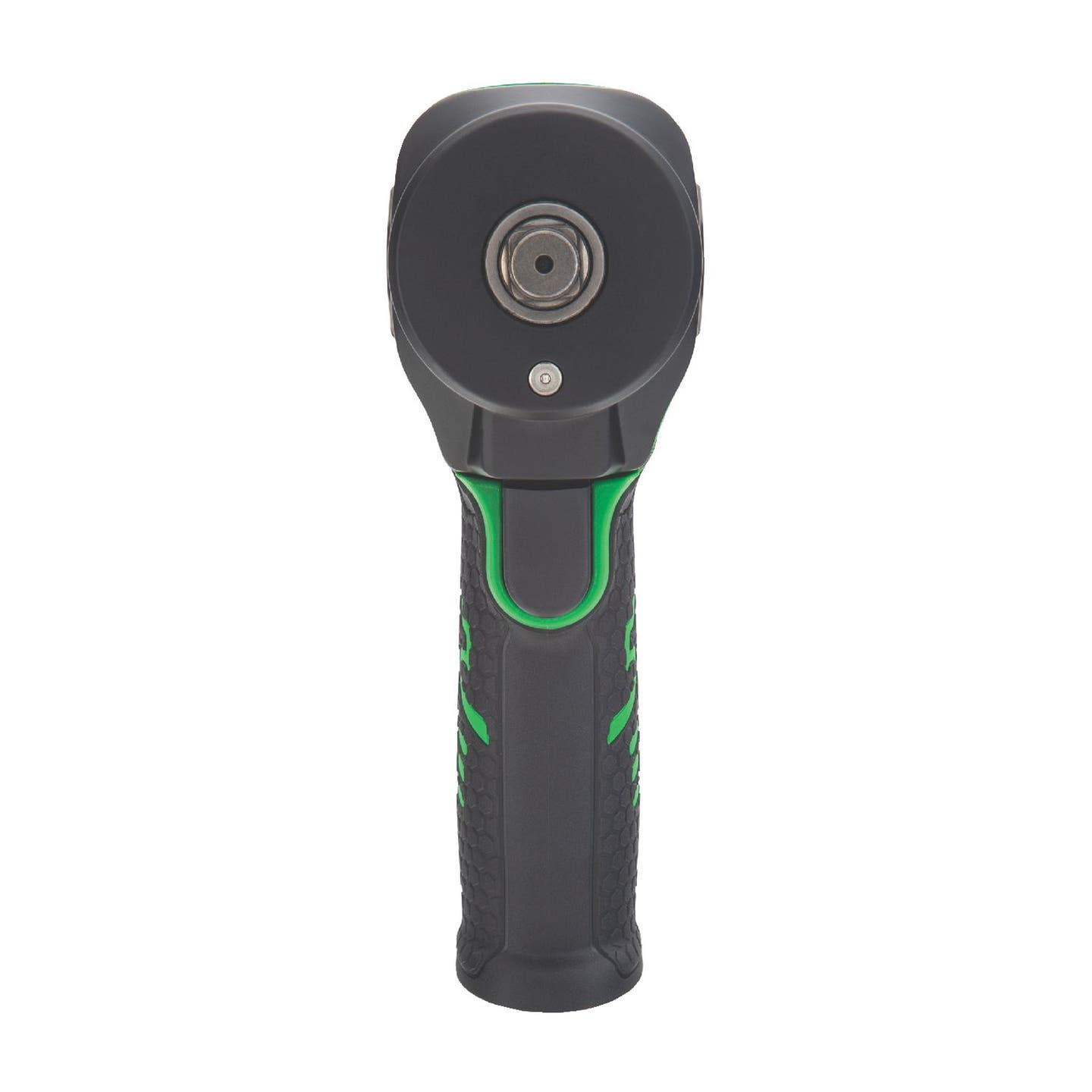

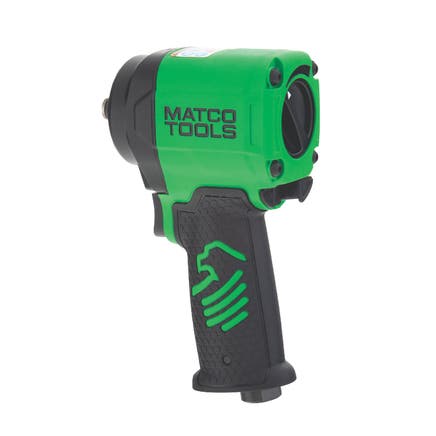

Powerful jumbo hammer mechanism provides best in class torque output in a small package
One hand operation with rear forward/reverse push button design
Rear regulator dial to adjust torque output in the forward direction
Variable speed throttle for precise control in tight spaces
Reinforced composite housing is resistant to most automotive fluids
Grease fitting in the clutch housing allows end user to service and extend the life of the tool
2 year warranty
Return Policy *
30-Day Risk FREE return for refund or replacement
If you are not 100% satisfied with your returnable items,
return the product for a refund.
* Applies to all purchases made on
MatcoTools.com excluding Toolboxes, Tool Carts, Diagnostics,
Welders, Shop Equipment and shipped items weighing more than
150 pounds; Excludes all Gifts and Branded Apparel items
except branded apparel size exchanges for exact items. See
your Authorized Matco Tools distributor for warranty or return
information on purchases made offline.
Specifications
Product Weight
2.5lbs.
Average Air Consumption
4.8cfm
Breakaway Torque
700ft. lbs.
Warranty
2 Year
Product Length
4-1/2"
Air Inlet Thread Size
1/4"
Maximum Working Torque
550ft. lbs.
Sound dB(a)
98
Drive Size
1/2"
Forward/Reverse Controls
Rear Button
Color (Matco Standard)
Green
Weight
2.5lbs.
RPM (Free Speed)
10000
Recommended Hose Size
3/8"
Style (Impact Wrench)
Pistol
Material (Air Tool)
Composite
Parts Breakdown
MT2765G_PartsBreakdown_01.pdf
Please click on an image below to play the video
1/2" DRIVE STUBBY PNEUMATIC IMPACT WRENCH - GREEN is rated
4.7 out of
5 by
22.
Rated 5 out of
5 by
ASM1541 from
Outstanding impactThis little guy packs an unbelievable punch. Versatile and lightweight. The head is a little taller than some stubbies but it’s just about the most narrow I’ve used and so compact overall. Let’s me save the 2779 for emergencies. This will cover 98% if your 1/2” tasks even in the rust belt.
Date published: 2021-03-29
Rated 5 out of
5 by
John456 from
Great for tight areas!!!It is compact and pack a punch also! It feels good in the hand and doesn’t feel top heavy Overall I love this little impact
Date published: 2020-10-23
Rated 5 out of
5 by
Derrik from
Great for Brake Work!I purchased this impact along with the stubby impact sockets to use for brake work. First use, I cut down the amount of time I spent working in about half. It's powerful enough to take lugnuts off and on, remove caliper bracket bolts, etc. I have also started using it for ball joint nuts and tie rod end nuts because of its 10,000 RPM. No more cutting of the studs to get a stubborn nut off when the stud spins in place. All together, I highly recommend this tool for any serious mechanic looking to make their work faster, easier, and better!
Date published: 2020-10-30
Rated 4 out of
5 by
DoubleARON from
works good until It breaksI've had this gun for a little over a year and it broke just a couple months after purchase and now my replacement just broke. I am very happy with the performance of the gun it has lots of Power I use it all the time for taking off wheels and brakes and front end work . it is very light and comfortable . my only complaint Is that I'll be on my 3rd gun in about a year because the insides keep breaking.
Date published: 2020-11-14
Rated 5 out of
5 by
Matcoforlife from
This impact is amazing!This is such a great Impact. The short design and stubby of this gun make it AMAZING! It gets in so many places that a normal impact can’t. I have the version before this one but it holds up in every application you can use it for. From steering and suspension and Vehicle mounts to just taking off lug nuts.
Date published: 2020-10-20
Rated 5 out of
5 by
Anonymous from
Small and powerful!!I purchase the impact and was stuned after the first 5 minutes!! Has so much tourque on such a small format!! Its light powerful, love the push boutons of the back, one hand use. I'd have to say if my garage would burn down its the first tool I'd grab and run!!
Date published: 2020-12-06
Rated 5 out of
5 by
jnjmotorsports from
Great for tight spacesI do mostly aftermarket suspension work and found this tool for removing is perfect to get the brake calipers and upper control arms off with no problems. disassembly is a breeze with this tool.
Date published: 2020-12-10
Rated 5 out of
5 by
Fborjas from
Perfect impact tool for many.This tool is fantastic. It's super lightweight and has more than enough power for most people's needs. The only thing I wish it had was a built in muffler to reduce the noise a bit.
