36mm 12-point wrench is for turning a 2001-present Duramax motor over from the bottom side of vehicle. When a pickup is on the hoist you turn the motor over to loosen the torque converter bolts. The offset allows clearance for stabilizer bar and you can do all the work from the bottom... View Details

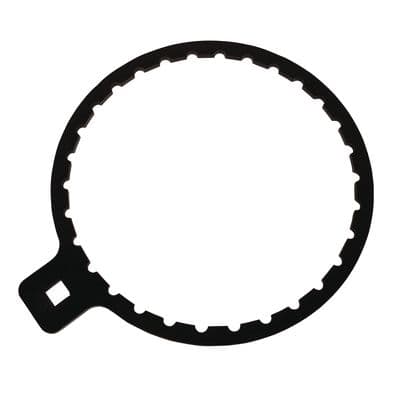

All metal wrench to remove and install bowls on newer Paccar chassis mounted fuel filter assemblies. The tool has 100% engagement around the ring with a 3/8 square drive design which allows easier access to the fuel filter found on Kenworth, Peterbilt and Cummins diesels. Laser-cut steel provides strength to loosen even the toughest bowls... View Details

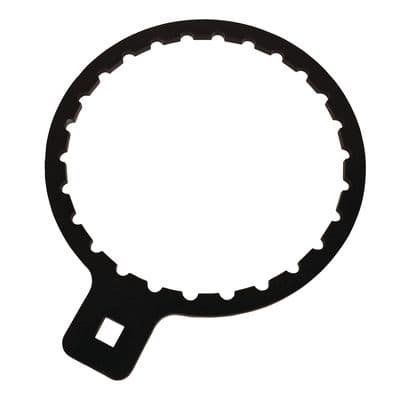

Specially designed wrenches for removing and replacing the main filter collar on aftermarket diesel fuel filter systems. The tool has 100% engagement around the ring with a 3/8” square drive design which allows easier access to the fuel filter. High strength steel prevents the wrench from flexing while loosening stubborn filter collars... View Details
Specially designed wrenches for removing and replacing the main filter collar on aftermarket diesel fuel filter systems. The tool has 100% engagement around the ring with a 3/8” square drive design which allows easier access to the fuel filter. High strength steel prevents the wrench from flexing while loosening stubborn filter collars... View Details
Specially designed wrenches for removing and replacing the main filter collar on aftermarket diesel fuel filter systems. The tool has 100% engagement around the ring with a 3/8” square drive design which allows easier access to the fuel filter. High strength steel prevents the wrench from flexing while loosening stubborn filter collars... View Details

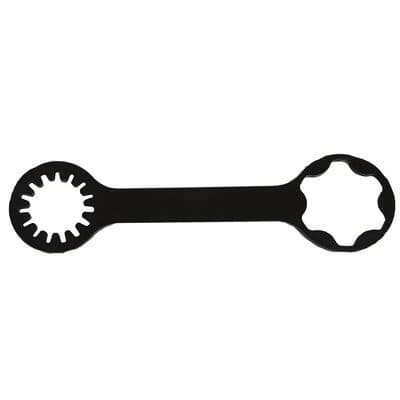

Double ended wrench removes and installs vent cap on top of canister. The tool has 100% engagement on the cap to eliminate a chance of breaking the teeth off on the cap. View Details
Fits 2011 to current model 6.7L Power Stroke. Pulls the injector straight out of the engine. Lifts about 3/4" to completely remove a stuck injector... View Details
Used on 2011 to current Duramax LGH and LML engines. 20" length provides leverage and easy handling. Holds pulley at 4 points to reduce damage. View Details
Used to pull the injector and valve cam gears on Cummins engines (2007-2017) . Comparable to Cummins #3163069. View Details
Helps locate air leaks in turbo system components by plugging the output side of the turbo and the intake inlet. Air is applied through one adapter to show the presence of leaks within the system. Four pairs of stepped adapters to fit most turbo systems on light-duty trucks and Class 7 & 8 Semis... View Details
Locks flywheel in place when removing harmonic balancer on 6.6L Duramax engines with Allison automatic transmissions. Saves time by locking the flywheel at the transmission instead of having to remove the starter for water pump replacement. Use 36mm 12-point socket with 3/4" square drive to remove harmonic balancer bolt and retorque on installation. View Details
Allows easy access to hard to reach DEF line connectors. Two sided design allows for straight and 90° access. Three different sizes... View Details
Two piece design allows easy access to small Voss style connectors. Straight and 90° versions for use on various connector angles. Made from precision laser cut steel for long life. View Details
3/8" drive barring tool is used when making valve adjustments on pump settings made with a two piece sleeve. Two piece sleeve allows proper contact with the flywheel when the flywheel is at different depths from the hole where the tool is inserted. Most of the popular Dodge diesel pickup trucks require the use of this tool... View Details

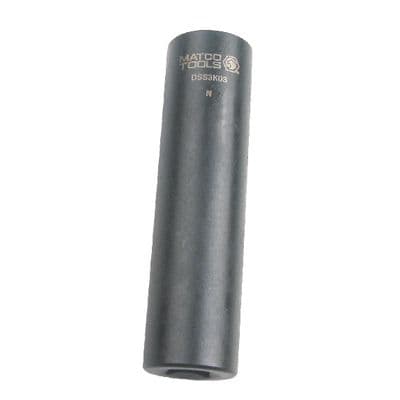

Works on all GM Duramax diesel trucks 2001 - present 6.6L. 36mm, 12 point, 3/4" drive impact socket removes the crank bolt which requires a torque of 285 ft. lbs. 14mm, 1/2" drive stubby impact Allen socket aids the technician in removal and installation of the flywheel... View Details
Designed to be used on a Davco 242/243 aftermarket fuel filter system. Designed to loosen the filter vent cap on top and the main filter collar. Half-moon design provides easier access to the fuel filter and is made of high strength steel that prevents wrench from opening when loosening collar. View Details
12 point box wrench on both ends. 5/8" on one end; 11/16" on the other. Accommodates air compressor and fuel flange bolts on NH series in-line 6 cylinder engines. View Details
Used to plug the fuel filter when changing filter on 2004-2016 Chevy Duramax. Threads into the filter for a secure seal so the filter can be removed from the tight space without spilling fuel . T-handle makes removal and installation easier... View Details
For removing and installing the wire harness on the glow plug connectors in the 6.0 Ford diesel engine. Made of stainless steel for rigidity and durability with a thumb tab and textured high visibility grip to get a better grip on the tool when removing the harness. Sometimes the harness is fragile and can break easy, and with a better grip, the tech will have more control when removing the harness, lessening the chance of breakage... View Details
Fuel filter wrench for the 2013-current RAM 1500 Ecodiesel. Made of cast aluminum with a 3/8” square drive and 7/8” hex drive. Designed with four tabs that line up on the outside of fuel filter housing. View Details
