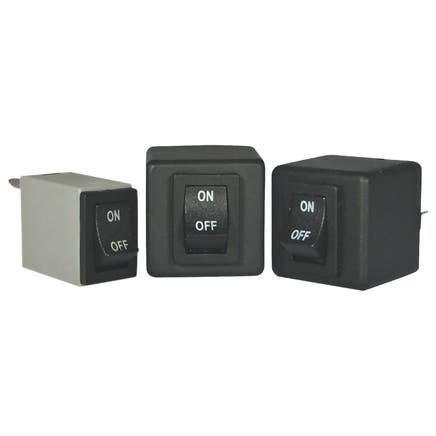

RELAY BYPASS SWITCH SET
Part No. 9036
RELAY BYPASS SWITCH SET
Part No. 9036
$54.95
Follow this product
Free shipping on orders over $75
Warranty *
Free 30-days return *
Customer support
Features and Benefits
- Allows easy testing of fuel injection pressure by energizing the fuel pump while the engine is off
Features and benefits
- Allows easy testing of fuel injection pressure by energizing the fuel pump while the engine is off
- Relay bypass allows a technician to control fuel pump independent of “key on” systems
- Operating range: 20 amp continuous, 30 amp surge (12V)
- Plugs in place of relay

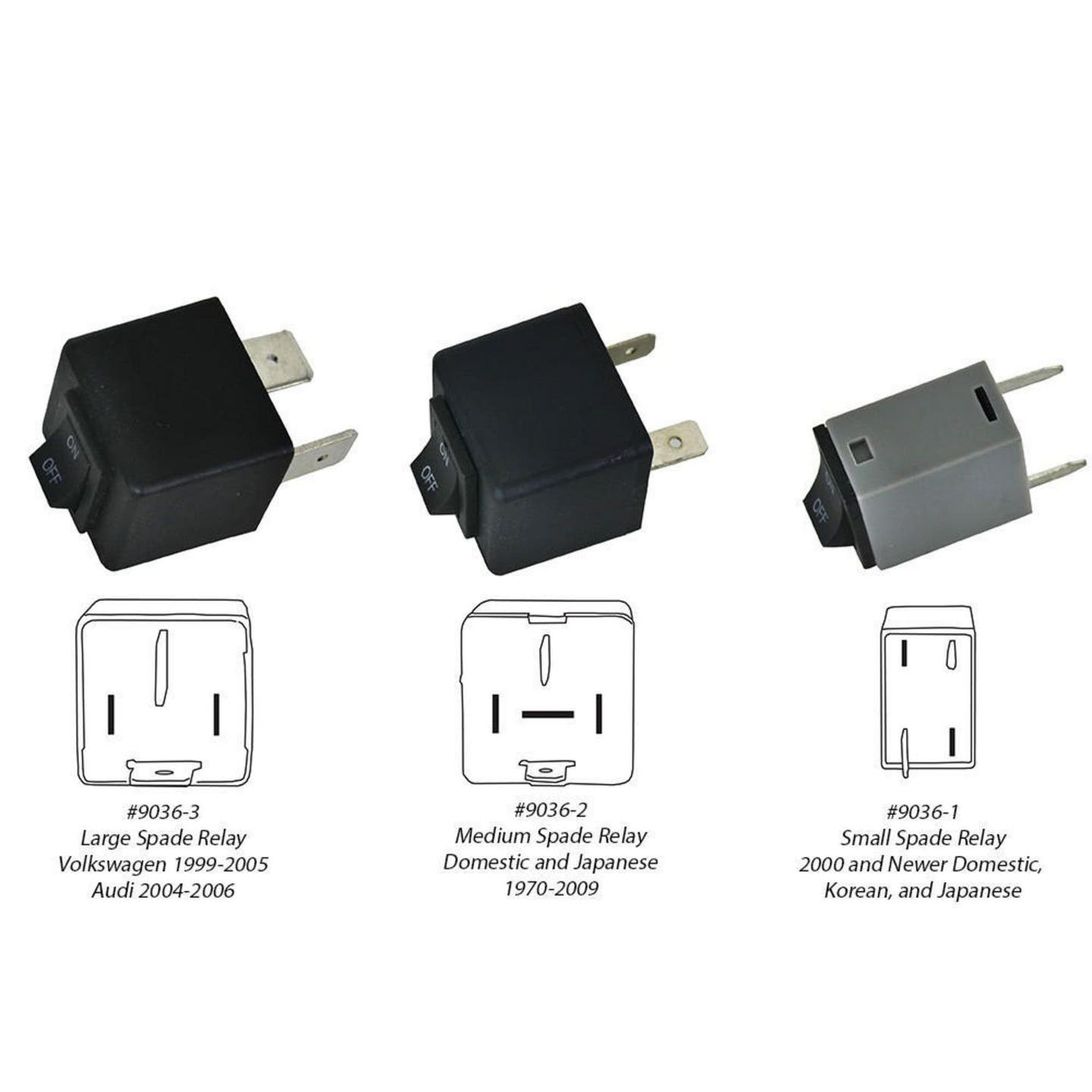

- Small Relay: Domestic, Korean, and Japanese 2000 and newer
- Medium Relay: Domestic and Japanese 1970-2009
- Large Relay: Volkswagen 1999-2005 Audi 2004-2006
Features and benefits
- Allows easy testing of fuel injection pressure by energizing the fuel pump while the engine is off
- Relay bypass allows a technician to control fuel pump independent of “key on” systems
- Operating range: 20 amp continuous, 30 amp surge (12V)
- Plugs in place of relay
- Small Relay: Domestic, Korean, and Japanese 2000 and newer
- Medium Relay: Domestic and Japanese 1970-2009
- Large Relay: Volkswagen 1999-2005 Audi 2004-2006
Relay Voltage (Low)
11V
Relay Voltage (High)
15V
Application (Relay Tester)
Automotive
