Features & Benefits
- HIGH-CONTRAST DISPLAY. Bright 6,000 Count Negative LCD Display that's easy to read inside or outside the shop
- PRECISE READINGS. True RMS Accuracy ensures precise readings on non-sinusoidal or distorted signals
- HYBRID AND EV SAFE. Certified with CAT IV 600V / CAT III 1,000V safety ratings.
- QUICK RESULTS. 60-segment analog bar graph provides fast visual feedback for signal fluctuation
- ACCURATE MEASUREMENT. Low impedance (LoZ) mode helps eliminate ghost voltage readings and measures true voltage on a circuit
- DUAL DISPLAY CAPABILITY. Allows AC voltage or current and frequency to be viewed simultaneously, increasing efficiency during real-time diagnostics
- VERSATILE READINGS. Continuity and diode testing
- MULTI-MODE. Min/Max/Hold/Relative modes for capturing and comparing measurements
- AC/DC Voltage: 0.01mV - 1000V
- AC/DC Current: 0.1uA - 10A
- Resistance: 0.1Ω - 50MΩ
- Frequency: 0.001Hz - 60MHz
- Duty Cycle: 0.1% - 99.9%
- Capacitance: 0.001nF - 60mF
- Temperature: -40°F to 1,832°F
Features & Benefits
- Bright 4,000 Count Negative LCD Display that's easy to read inside or outside the shop
- True RMS Accuracy ensures precise readings on non-sinusoidal or distorted signals
- Hybrid and EV Safe. Certified with CAT IV 600V / CAT III 1,000V safety ratings.
- Continuity and Diode Testing
- Min/Max/Hold/Relative modes for capturing and comparing measurements
- Non Contact AC Voltage Detection
- AC/DC Voltage: 0.1mV - 1000V
- AC/DC Current: 0.1uA - 10A
- Resistance: 0.1Ω - 40MΩ
- Frequency: 0.001Hz - 5MHz
- Duty Cycle: 0.1% - 99.9%
- Capacitance: 0.01nF - 4mF
Features & Benefits
- Flexible cable design ensures durability and ease of use in tight spaces
- Temperature range: -40°F to 500°F (-40 - 260°C)
- Length: 3 feet
- 4mm connector
- Compatible with Matco digital multimeters MDDMM500, MDDMM700 and MDDMMCLAMP
Features & Benefits
- Automotive Specific smart meter that alerts a technician of out of specification readings
- Fuse Current Measurement: Ability to Read current across ATM,ATC and Maxi fuses
- Identifies active circuit fuses to locate parasitic drain
- 1000V CATIII/ 600V Cat IV EV Hybrid Safe
- In-line current measurement up to 30 Amps
- On screen guided diagnostics ensure tests are preformed accurately with visual on screen Pass/Fail results
- On screen Prompts to ensure Test leads are connected correctly based on the selected test.
- Continuity / Diode / LED Test visual and audible test indicators
- Normal and Smart Alternator Cranking Test with Visual Green, Yellow, Red results Indication
- HZ (Frequency and Duty Cycle)
- Cranking Voltage Test with Visual Green, Yellow, Red results Indication
Features & Benefits
- Voltage: AC 600V DC 600V
- Current: AC 80A DC 80A
- Display 4000 counts
- Jaw Opening 24mm/0.9”Auto & Manual RangingAuto Power Off
- Non-Contact Voltage Detector
- Diode Open Voltage 3.2V
- - Continuity Buzzer <lt/>50Ω
- Data Hold
- Large LCD Display Backlight
- Work Light
Features & Benefits

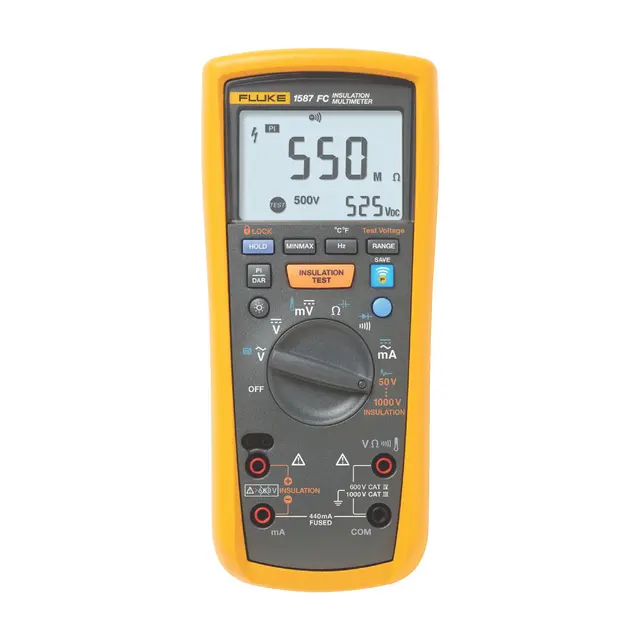

- Combines a digital insulation tester with a full-featured, true RMS digital multimeter
- Live circuit detection prevents insulation test if voltage greater than 30V is detected for added user protection
- PI/DAR timed ratio tests with TrendIt™ graphs identifies moisture and contaminated insulation problems faster
- Memory storage through Fluke Connect eliminates writing down results which reduces errors and saves data for historical tracking over time
- Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons
- Historical tracking and trending of assets identifies degradation over time and allows real-time decisions to be made in the field with Fluke Connect® Assets (sold separately)
- CAT III 1,000V, CAT IV 600V rated
Features & Benefits

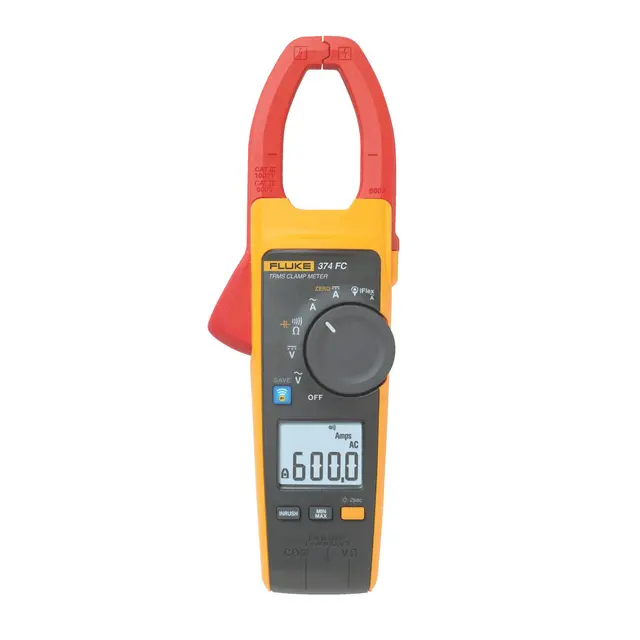

- Reads up to 600V and 600A in both AC and DC modes
- Features proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Large, easy-to-read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Create and share reports from the field via email or converse in real time with ShareLive™ video calls
- Connect your meter to your smartphone using Fluke Connect Measurements app to increase the troubleshooting power of your clamp
- True-RMS voltage and current for accurate measurements on non-linear signals
- CAT IV 600V, CAT III 1,000V rated
Features & Benefits
- WIDE RANGE OF READINGS. Provides readings for volts, amps and ohms required for automotive electrical system tests
- CLAMP JAWS FOR EASY MEASURING. Handy 35mm AmpTip clamp jaws ergonomically measure at jaw tip for small sized conductors up to 60A and regular current, and Hz measures at jaw center for regular conductors up to 600A
- PROFESSIONAL DIGITAL MULTIMETER. Records max, min and calculates average readings over time
- ALL IN ONE DEVICE. Features many different modes to measure what you need, including peak-RMS mode, relative mode, auto-ranging and more
- PRECISE MEASUREMENT. Smallest measuring range: 60A with measurement down to 10mA (reading below 100mA is unspecified)
Features & Benefits
- WIDE RANGE OF READINGS. Professional digital multimeter provides readings for volts, amps and ohms required for automotive electrical system tests as well as diode and continuity tests
- GHOST VOLTAGE BUSTER. Lo-Z ghost voltage buster drains ghost voltages leaving only hard signals on meter readings
- AUDIBLE WARNING FOR SAFETY. Beep-Jack audible warning beeps against improper A-terminal plug in and decreases the risk of damage
- DCV and ACV: 0.1V - 1,000V
- DCA and ACA: 0.1 mA to 8A (15A for 30 sec. max with 5 minutes cool down interval)
- Ohms: 0.1 to 60M
- Line level frequency: 10.00Hz to 10.00kHz
- Logic level frequency: 5.00Hz to 1.000MHz
Features & Benefits
- ACCURATE PROFESSIONAL READINGS. Digital multimeter provides readings for volts, amps and ohms required for automotive electrical system tests, as well as diode and continuity tests
- AUDIBLE WARNING FOR SAFETY. Beep-Jack audible warning beeps against improper a-terminal plug in and decreases the risk of damage
- DCV and ACV: 0.01mV - 1,000V
- DCA and ACA: 0.1 mA to 8A (15A for 30 sec. max with 5 minutes cool down interval)
- Ohms: 0.1 to 60M
- Line level frequency: 10.00Hz to 10.00kHz
- Logic level frequency: 5.00Hz to 1.000MHz
Features & Benefits
- WIDE RANGE OF READINGS. Advanced digital multimeter provides readings for volts, amps and ohms required for automotive electrical system tests as well as diode and continuity tests
- Selectable 4-stroke or 2-stroke DIs for RPM functions
- Selection of 1 to 12 cylinders for dwell and IG-RPM readings
- Fuel injection detector tests both TBI and PFI engines with user-selectable sensitivities
- Performs inductive pickup RPM test on spark plug ignition HV wires
- Dwell-angle and % duty tests conventional engines with user-selectable sensitivities
- Hz of line level voltage measures noisy high voltage ACV frequencies
- +/- trigger polarity for user-selectable readings
- Beep-Jack audible warning beeps against improper a-terminal plug in and decreases the risk of damage
- DCV and ACV: 0.01mV - 1,000V
- DCA and ACA: 0.1 mA to 10A (6A continuous, 10A for 30 sec. with 5 minutes cool down interval)
Features & Benefits
- 200 A AC and DC current measurement with detachable jaw
- 600 VAC and DC voltage measurement
- Detachable jaw makes accessing wires and viewing the display easier
- Built-in flashlight/torch allows for easy illumination and identification of wires
- CAT III 600V
- Compact design fits in your hand and can be used while wearing protective equipment
- State of the art signal processing allows for use in noisy electrical environments while providing stable readings
- Large, easy to read back-light display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
- Soft carrying case
- 3 year warranty
Features & Benefits
- Checks resistance, continuity, frequency, capacitance and diode test
- Measures 20A (30 seconds momentary, 10A continuous) and provides accurate measurements on non-linear loads
- Temperature range: -10º to 50ºC
- CAT III 600V safety rating
Features & Benefits
- Meter only
- Tests DC and AC voltage, resistance, current, conductance, duty cycle, frequency and pulse width to test virtually any circuit
- Flight recorder function records, captures and stores intermittent readings on oxygen sensors and current drain
- Access door for fast battery changes without opening up the case
- Input Alert provides audible warning against wrong use of input jacks
- Analog bargraph to track changing or unstable signals
- Large display digits and two-level bright white backlight for increased visibility
- Autohold™ to capture stable readings with only one touch of the leads
- Current measurements up to 10 A, 20 A for up to 30 seconds
- Millisecond pulse width measurements for fuel injectors
- Min/Max/Average recording with Min/Max Alert to capture variations automatically
- Peak Min/Max to record transients as fast as 250 μs
- Relative mode to remove test lead resistance from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Replacement fuses: 0P943121, 0P803293
Features & Benefits
- Takes accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- Withstands hazardous 8,000V spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Relative mode removes test lead resistance from low ohm measurements
- Built-in thermometer to take temperature readings without having to carry a separate instrument
- Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models
- Selectable filter for accurate voltage and frequency measurements on motor drives
- Min/Max-Average recording with Min/Max Alert to capture variations automatically
- CAT III 1000V, CAT IV 600V safety rated
- Peak Min/Max allows capture of intermittents as fast 250 µS
