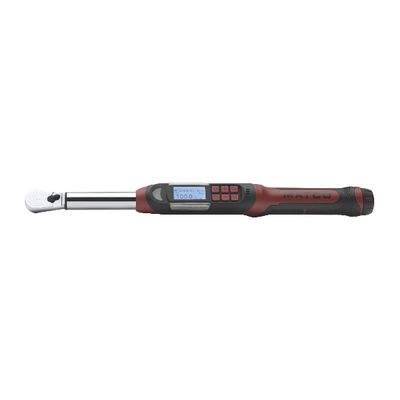

3/8" DRIVE FIXED HEAD ELECTRONIC TORQUE WRENCH 10-100 FT. LBS. WITH ANGLE
Part No. ETWB100KB
$512.95
Features & Benefits
- Angle measurement eliminates the need for angle meters for applications specified by manufacturers
- Recalibrate after 20,0000 cycles instead of 5,000
- Fully programmable to get the job done faster
Features & Benefits
- Angle measurement eliminates the need for angle meters for applications specified by manufacturers
- Recalibrate after 20,0000 cycles instead of 5,000
- Fully programmable to get the job done faster
- Nine preset modes to speed through repeat applications
- Sealed ratchet head for better performance
- 100% steel body construction
- Four torque alert modes: LCD display, dual progressive LEDs, audio alert and vibration
- Impact-resistant housing stands up to temperature extremes, corrosive materials and accidental drops
- Non-slip, comfort grip and flared handle provide a secure hold, even in high leverage jobs
- Teardrop design with 72 teeth and a 5° swing angle
- Protective end cap is solid threaded brass for a secure fit
- Accuracy CW+/-2% and CCW+/-3%
Return Policy *
30-Day Risk FREE return for refund or replacement
If you are not 100% satisfied with your returnable items,
return the product for a refund.
* Applies to all purchases made on MatcoTools.com excluding Toolboxes, Tool Carts, Diagnostics, Welders, Shop Equipment and shipped items weighing more than 150 pounds; Excludes all Gifts and Branded Apparel items except branded apparel size exchanges for exact items. See your Authorized Matco Tools distributor for warranty or return information on purchases made offline.
Specifications
| Angle Range | 0 to 360° CW or CCW | Graduation (ft-lb) | 1 ft. lb. |
|---|---|---|---|
| Storage Temperature | 0°~122°F(-20°~50°C) | Range (N-m) | 6.8-135.6 |
| Product Length | 17-1/2" | Head Type | Fixed |
| Range (in-lb) | 60-1,200 | Range (ft-lb) | 5-100 |
| Head Depth (in) | 1.06 | Drive Size | 3/8" |
| Graduation (in-lb) | 1 in. lb. | Gear Teeth | 72 |
| Color (Matco Standard) | Burgundy | Graduation (N-m) | 1Nm |
| Weight | 4lbs. | Swing Arc | 5° |
| Angle Measurement | Yes | Operating Temperature | 40°~110°F(5°~42°C) |
| Head Width (in) | 1.22 |
Instruction Manual
ETWB100KB_InstructionManual_01.pdf
Parts Breakdown
ETWB100FKB_PartsBreakdown_01.pdf
3/8" DRIVE FIXED HEAD ELECTRONIC TORQUE WRENCH 10-100 FT. LBS. WITH ANGLE is rated
3.7 out of
5 by
12.
Rated 1 out of
5
by
Unknown from
Great when it works, but generally never does.
I bought this for its many features. I have owned it for about two years and have only been able to use it a handful of times because it is always has an error message. I have had it replaced once, only to experience the same problems with the replacement. Last time I had it sent in for repairs I was told they couldn't get the parts needed to fix it. Save your money and buy a mechanical style torque wrench.
Date published: 2015-03-24
Rated 1 out of
5
by
snapon from
very poor tool.
nothing but problems from first time using have had fixed twice within 4 month period for same issue.
Date published: 2012-01-12
Rated 5 out of
5
by
lowderjr from
Good torque wrench
I was thinking about getting another Snap-on TechAngle since I already have the 1/2" but I figured I'd give this Matco a try and I love it. I only break out the TechAngle on head bolts but I use this one all around. I do like how the end cap is reversed thread so unlike the Snap-on you're less likely to unintentionally unscrew the cap while using it and it feels good in the hand. It does not feel like a cheap tool.
Date published: 2019-12-24
Rated 4 out of
5
by
Mikethetoolbreaker from
good wrench but needs lifetime warranty on the head.
This torque wrench works perfectly and the angle meter performs flawlessly on all automotive torque to yield head bolts. The only problem that I have had with it is the ratchet head is a little sloppy. enough so that when I had used it about 250 time (according to the use meter built into it) the reverse and forward lever would jam and not allow it to move. I was able to fix this by sacrificing a cheap feeler gauge and shimming the innards so they would fit. I only wish Matco had a lifetime head on this torque wrench, if it did it would have gotten 5 satrs.
Date published: 2011-09-09
Rated 5 out of
5
by
twmotox from
3/8 Digital torque wrench
Great tool to add to my toolbox. I love the angle torque setting. Much easier to use than an angle gauge, Very solid feel. Was going to get a 1/2 but i thought i would get more use out of this one and it goes to 100 ft lbs anyway.
Date published: 2019-05-07
Rated 1 out of
5
by
fireman98 from
what a piece of junk
I have only used this a hand full of times because it doesn't want to turn on. I've changed batteries, but still nothing. Also the screws kept falling out so i had to run tape around it to keep them in. I have other competitors tools now because the quality of Matco just doesn't compare nor can you find a dealer to take it to. When u pay this much for a tool it should last especially when its well taken care of
Date published: 2013-11-27
Rated 5 out of
5
by
Billebob65 from
user friendly
I like the led lights that let you know how close your getting to the spec. torque. Works well overall. The only thing I don't like about it is how sensitive it is to being bumped on something while your using it in tight areas and then you have to wait for it to recalibrate.
Date published: 2011-12-08
Rated 3 out of
5
by
student from
More hassle than non-electronic
I got this less than 6 months ago and had to change the batteries already. I rarely use it, so that is a lot of battery it uses. I don't work at a shop, so if you do, you probably would have to change the batteries 4 times within a 6 month timeframe. When it works it works good, but I found mine to be glitchy. Specifically, it would change the torque settings that I had it set to. I noticed that the torque seemed a little more than what I set it to so I looked at the reading and it was set to 10ft lb. more than what I wanted! It is cool that you can see exactly how much pressure you are putting before reaching your actual torque, but its just not worth all the hassle of battery changing and glitching. Also, when it dies, it just dies all of a sudden. It has a battery life notification but when you think you have a little more battery life, you don't and it'll just die on you. Just get a normal one!
Date published: 2013-02-03
