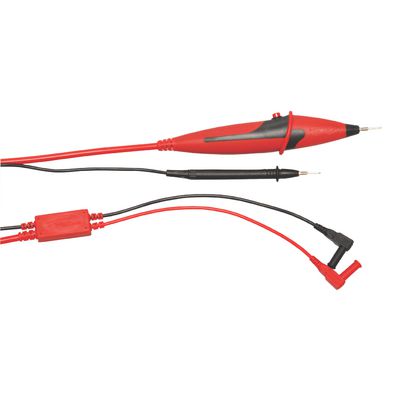

Performs voltage drop tests with the push of a button and finds problems in corroded wires/connections and shorts to ground
Steady pin probe tips allow the probe tip to sit firmly on the male ECM or connector pin
Applies approximately 0.5A load to a 12V circuit and works with your existing multimeter
Return Policy *
Return for refund within: Non-Refundable
Return for Replacement within: 30 days
* Applies to purchases made on matcotools.com only; see your Matco distributor for warranty or return information on purchases made elsewhere.
LOAD PRO DYNAMIC TEST LEADS is rated
5.0 out of
Rated 5 out of
Works great.I purchased this load tester several months ago when the dealer showed it to me, but forgot I even had it until last night, when I wanted to load test a sensor ground circuit. I followed the instructions, and it has you use it with a multimeter, and when testing ground, hook the ground lead to the circuit being tested, then measure at a +12v fuse, or battery terminal. I tested it at the battery terminal, and depressed the button for 10 seconds to load the circuit, and it only dropped .1 volts, according to the chart, that's only 1 ohm. That drop was most likely from the 8 feet of jumper I had going from under the vehicle to the battery.
After testing that ground, I felt fairly confident that it is a good circuit, but having never used it before, there was slight doubt in my mind.
Just now, a vehicle came in with one tail light out, and the customer had already changed the bulb, and the socket. After testing with my power probe, and seeing 11.4 volts on that circuit, I grabbed my new load tester, and multimeter, and saw the same reading, until I loaded the circuit. It immediately dropped to zero volts. I had the ground lead clipped to an aluminum rail on the bed of the truck, so I grabbed a t-pin, and probed the ground circuit at the connector, and retested. Same results. Took less than 5 minutes to determine that the tail light circuit was bad on that side.
After using this tool twice, and seeing two different results, I am happy with the purchase, and look forward to using it more in the future.
Date published: 2017-11-10
Rated 5 out of
Great for electrical and electronics diagnosticsThis tool makes finding electrical problems easy. You can use it to find bad power and ground circuits on multiplex systems, can use it to verify a ground side output led is working on a multiplex card, can use it as a substitute load to fool computers that it has a complete circuit so it will give you full system volts and not just bias voltage. You can also use it to individually load test wires by putting the positive lead on a battery source and then applying the negative lead to the wire you are testing and then have the other end of the wire grounded. Push the button, if voltage doesn't drop your good. Another nifty thing I have learned with this tool is you can use it in conjuction with a scanner. With this test you can verify that the computer is seeing ground. Hook up the positive lead to the wire you want to test, put the black test lead to ground. If you have voltage, push the button and watch for the voltage to pull low and watch the scanner screen to see if there is a change. If it changes then you know that this circuit is good and carry current. This is a great tool and I highly reccommend it. I have used a lot of diffrent test tools over the years and this is by far the best one to use.
Date published: 2011-09-03
Rated 5 out of
A must have tool for electrical and electronic diagnosticsThis tool is a great test accesory to your Digital Multimeter. It has helped me find corrosion in circuits with the load it applies to the circuit. What I like about this tool the most is that you are using voltage drop to test the circuit. Using a ohm meter can fool you. You can have one strand of wire together and show continuity, but can it carry current? I have used this tool to check for bad PLC inputs and outputs by checking a voltage feed with the load of the tool. If it doesn't drop, your good. Also can be used on a ground side output by touching the loadpro positive lead to the output ground, then ground your negative lead and then push the button. If the led lights up on the PLC, your good. Also works the same way on any multiplex system. I used it on a Thermo King Air Conditioning clutch circuit by fooling the computer with the leads to give me full system volts so I could check the integrity of the harness. If the computer senses a circuit problem, it takes away full sytem volts and all you have is bias voltage, the voltage the computer uses to sense faults. I fooled the computer with these leads and I figured out the problem in less than five minutes. There was a open in the clutch wire. I just recently used it to verify idle validation switch status on a cummins ISL engine by checking the voltage at the off idle wire and then loading it and watching the lap top for a change in validation, the voltage dropped, indicating a good ground, and the status changed! Indicating that the circuit is good! I am a proffesional Transit bus Technician with 14 years experience and in all the years I have been doing diagnostics, I have never seen a diagnostic tool so easy to use. I highly recommend this tool.
Michael John Eilbracht
ASE Master in Transit, Auto, Heavy Truck, certified Vehicle Electronics Technician (VET) ASE Certified L2 specialist
